• Honda TRX90 Dual A arm conversion system ( DACS)

    $1,975.00

    HONDA TRX90 MINI QUAD DUAL A ARM CONVERSION SYSTEM. D.A.C.S.


    Price: $1,875.00 BARE

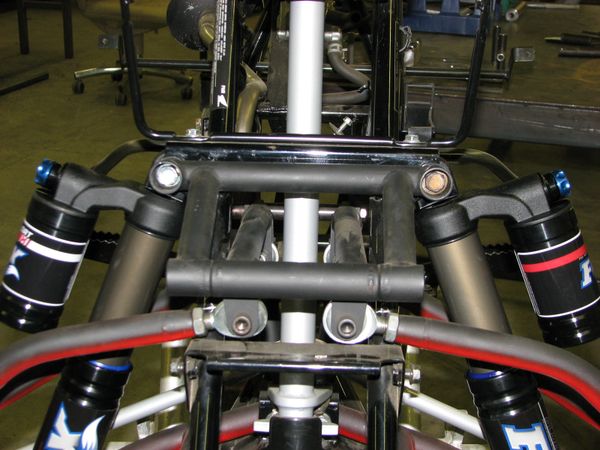

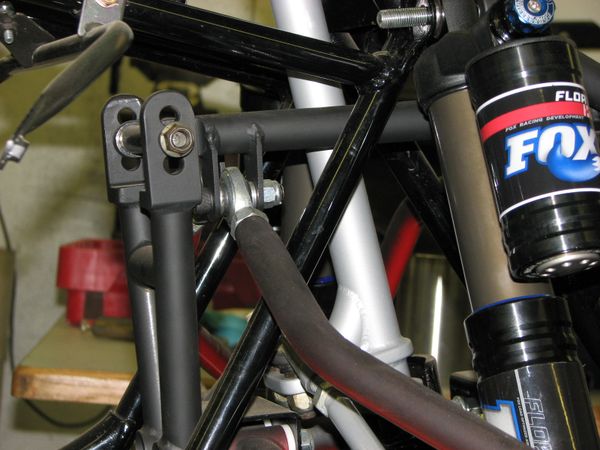

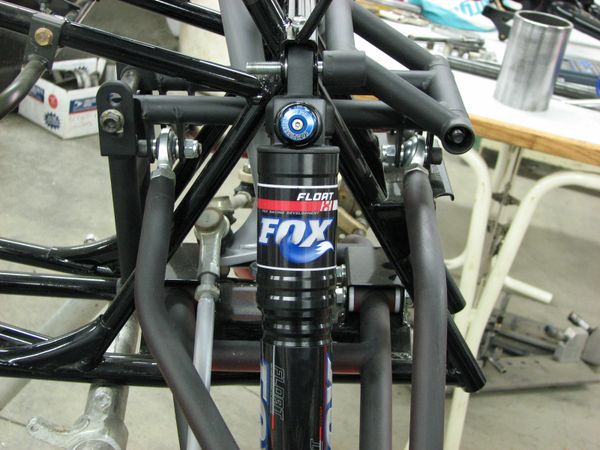

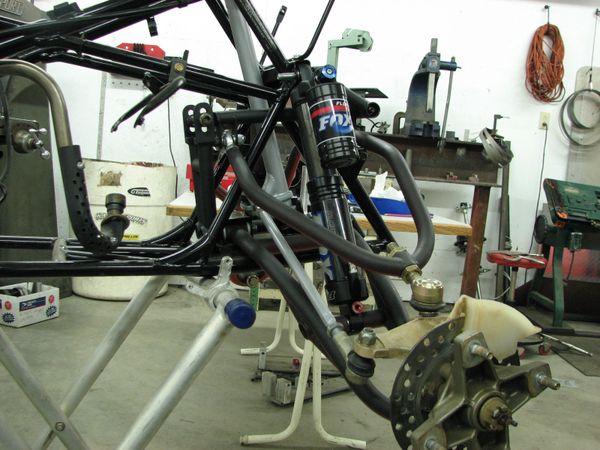

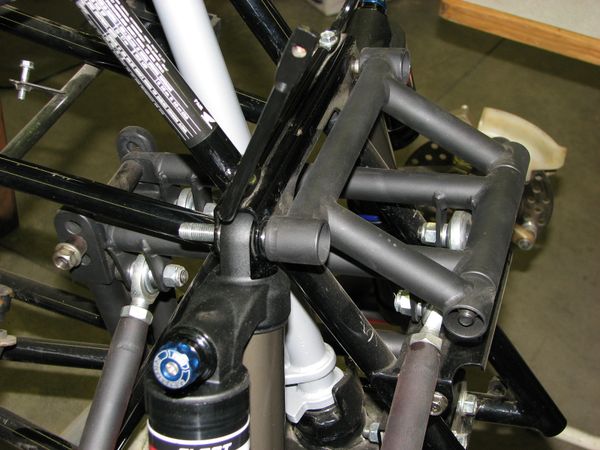

    Features:  Our Dual A arm Conversion System. It is a full true "bolt on design" not the "clamp on a tube design." This system is a modular design which bolts directly to the existing A arm pivot points and shock mounts providing a safe, consistent, and a sturdy system.

    The DACS uses a 14.5" shock, producing over 9" of wheel travel. With the proper design used in the engineering of the system, there is very minimal "bump steer" in the handling of the TRX 90.

    Do not be mislead by other manufacturers claiming a better handling or safer system.

    The kit includes:
    (4) +6" MGC series A arms (fully adjustable)
    (1) Internal frame- For a secure safe reliable mounting system.
    (1) Chromoly anti vibe steering stem
    (1) Billet anti vibe handle bar clamp
    (1) Lot of hardware, tie rods, ball joints.


    Honda TRX 90 Build sheet



    The items listed below will be required to build your Honda TRX 90 using our Dual A arm conversion system.

     ATV Four Play DACS MX 48” Front End

    Honda 400 EX spindles, brakes, and hubs.

    Extended brake lines (Honda TRX450R + 2”)

    4/1 off set Honda/Suzuki wheels

    Aftermarket shocks

    ATV Four Play DACS MX 48” Rear End

    300 EX bearing carrier with Circlip

    450R rear brake caliper and brake stay

    450R brake rotor and brake hub

    300 EX adjustable axle (+1” +3”) with hubs and lock nut for axle.

    300 EX sprocket hub, sprocket for 428 chain. ( REBEL GEAR  http://www.rebelgears.com/ )

    Aftermarket shock





    ATV Four Play DACS XC 43” Front End

    Honda 400 EX spindles, brakes, and hubs.

    Extended brake lines (Honda TRX450R + 1”)

    4/1 off set Honda/Suzuki wheels

    Aftermarket shocks

    ATV Four Play DACS XC 43” Rear End

    300 EX bearing carrier with Circlip

    450R rear brake caliper and brake stay

    450R brake rotor and brake hub

    Aftermarket shocks

    300 EX Stock width axle with hubs and lock nut for axle.

    300 EX sprocket hub, sprocket for 428 chain. (REBEL GEAR http://www.rebelgears.com/ )

    Aftermarket shock
