Honda TRX90 Dual A arm conversion system ( DACS) – 1

$1,875.00$1,995.00

SKU: N/A Category:

Description

HONDA TRX90 MINI QUAD DUAL A ARM CONVERSION SYSTEM. D.A.C.S.

Price: $1,875.00 BARE

Features:  Our Dual A arm Conversion System. It is a full true “bolt on design” not the “clamp on a tube design.” This system is a modular design which bolts directly to the existing A arm pivot points and shock mounts providing a safe, consistent, and a sturdy system.

The DACS uses a 14.5″ shock, producing over 9″ of wheel travel. With the proper design used in the engineering of the system, there is very minimal “bump steer” in the handling of the TRX 90.

Do not be mislead by other manufacturers claiming a better handling or safer system.

The kit includes:
(4) +6″ MGC series A arms (fully adjustable)
(1) Internal frame- For a secure safe reliable mounting system.
(1) Chromoly anti vibe steering stem
(1) Billet anti vibe handle bar clamp

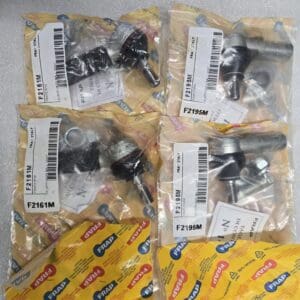

(1) Lot of hardware, tie rods, ball joints.

Honda TRX 90 Build sheet



The items listed below will be required to build your Honda TRX 90 using our Dual A arm conversion system.

 ATV Four Play DACS MX 48” Front End

Honda 400 EX spindles, brakes, and hubs.

Extended brake lines (Honda TRX450R + 2”)

4/1 off set Honda/Suzuki wheels

Aftermarket shocks

ATV Four Play DACS MX 48” Rear End

300 EX bearing carrier with Circlip

450R rear brake caliper and brake stay

450R brake rotor and brake hub

300 EX adjustable axle (+1” +3”) with hubs and lock nut for axle.

300 EX sprocket hub, sprocket for 428 chain. ( REBEL GEAR  http://www.rebelgears.com/ )

Aftermarket shock

ATV Four Play DACS XC 43” Front End

Honda 400 EX spindles, brakes, and hubs.

Extended brake lines (Honda TRX450R + 1”)

4/1 off set Honda/Suzuki wheels

Aftermarket shocks

ATV Four Play DACS XC 43” Rear End

300 EX bearing carrier with Circlip

450R rear brake caliper and brake stay

450R brake rotor and brake hub

Aftermarket shocks

300 EX Stock width axle with hubs and lock nut for axle.

300 EX sprocket hub, sprocket for 428 chain. (REBEL GEAR http://www.rebelgears.com/ )

Aftermarket shock

Additional information

Weight 26 lbs
Dimensions 12 × 12 × 26 in
Color Options*

SUPER MIRROR RED, SUPER MIRROR BLACK, SUPER MIRROR BLUE, SILVER, Textured Black, White, Bare

Size*

7/8" Billet anti vibe handle bar clamp, 1 1/8" Billet anti vibe handle bar clamp
