Honda TRX 90 XC DACS
ATV Four Play's Honda TRX 90 DACS. (Dual A arm conversion system)

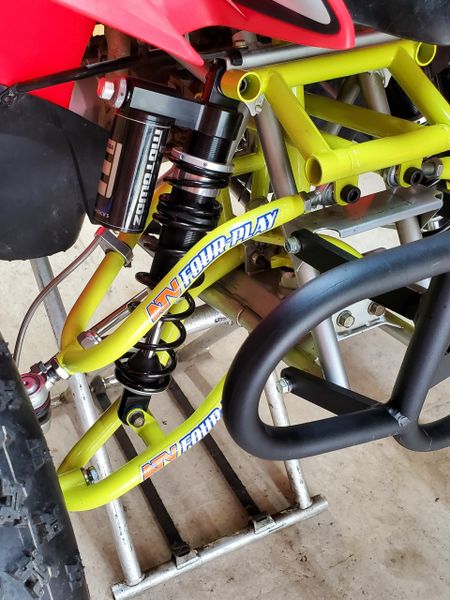

Converts your Honda TRX90 single A arm suspension to Long Travel dual A arm suspension!
We use an internal sub frame instead of U bolts and brackets or steel plates.
This is a direct bolt on kit using the stock frame "pick up points" to locate our sub frame.

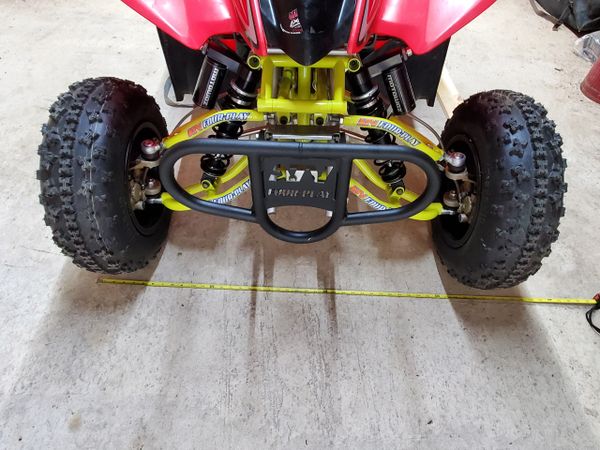

Using recommended, 4/1 offset wheels. The front end width is 42" wide.

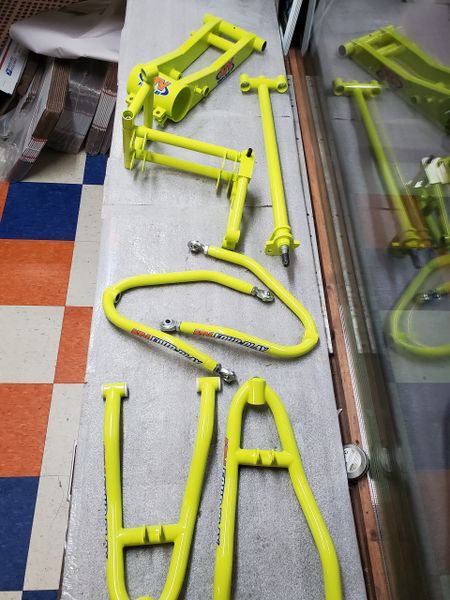

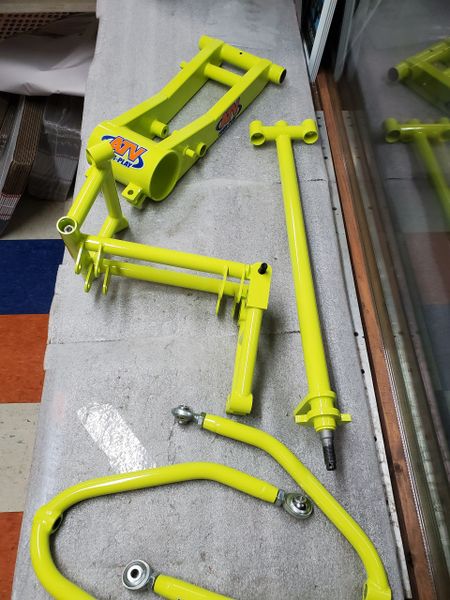

The kit includes:

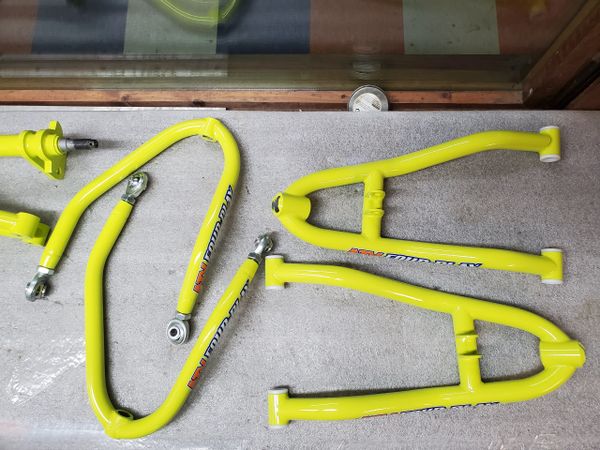

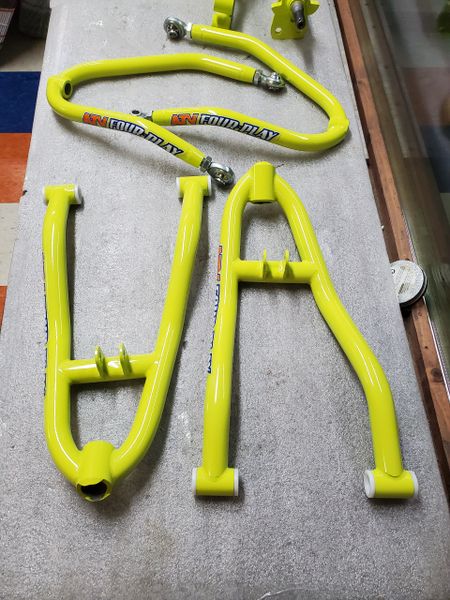

- Upper A arms
- Lower A arms
- Sub frame (DACS)
- Steering stem
- Anti vibe billet handle bar clamp.
- Tie rods
- Rod ends, ball joints and hardware.
Honda TRX 90 Build sheet
The items listed below will be required to build your Honda TRX 90 using our Dual A arm conversion system.
ATV Four Play DACS MX 48” Front End
Honda 400 EX spindles, brakes, and hubs.
Extended brake lines (Honda TRX450R + 2”)
4/1 off set Honda/Suzuki wheels
Aftermarket shocks
ATV Four Play DACS MX 48” Rear End
300 EX bearing carrier with Circlip
450R rear brake caliper and brake stay
450R brake rotor and brake hub
300 EX adjustable axle (+1” +3”) with hubs and lock nut for axle.
300 EX sprocket hub, sprocket for 428 chain. ( REBEL GEAR http://www.rebelgears.com/ )
Aftermarket shock
ATV Four Play DACS XC 43” Front End
Honda 400 EX spindles, brakes, and hubs.
Extended brake lines (Honda TRX450R + 1”)
4/1 off set Honda/Suzuki wheels
Aftermarket shocks
ATV Four Play DACS XC 43” Rear End
300 EX bearing carrier with Circlip
450R rear brake caliper and brake stay
450R brake rotor and brake hub
Aftermarket shocks
300 EX Stock width axle with hubs and lock nut for axle.
300 EX sprocket hub, sprocket for 428 chain. (REBEL GEAR http://www.rebelgears.com/ )
Aftermarket shock
